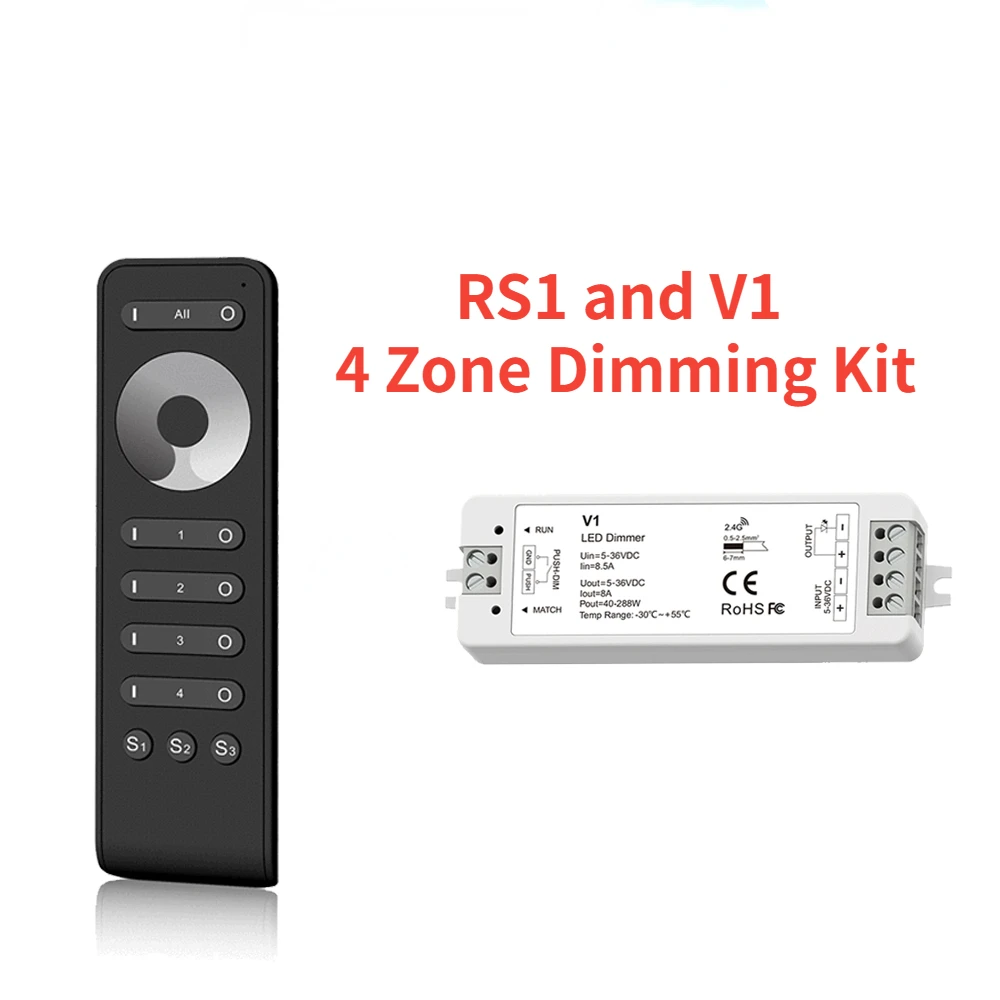

🧩 RS1 13-Key Touch Wheel RF 2.4G Remote Controller and V1 Single Color LED Dimmer DC5V-24V 36V Push Dimming 4 Zone Dimming Kit is a comprehensive lighting control solution, designed for seamless functionality and user-friendly operation. This versatile kit combines advanced dimming capabilities with intuitive remote control, making it an ideal choice for both residential and commercial lighting applications.
Model: V1/RS1
🔧 V1 Dimmer Features:
- Specifically designed for controlling single color LED strips, offering precise light management.
- Offers an impressive 4096 levels of dimming from 0-100%, ensuring smooth transitions without flickering or ash.
- Integrates easily with an external push switch, providing straightforward options for on/off control and dimming adjustments.
- Selectable light on/off fade time of 3 seconds enhances the user experience by allowing gentle transitions in lighting.
- Equipped with over-heat, over-load, and short circuit protection mechanisms that ensure safety and reliability, with automatic recovery from faults.
🧩 RS1 Remote Control Features:

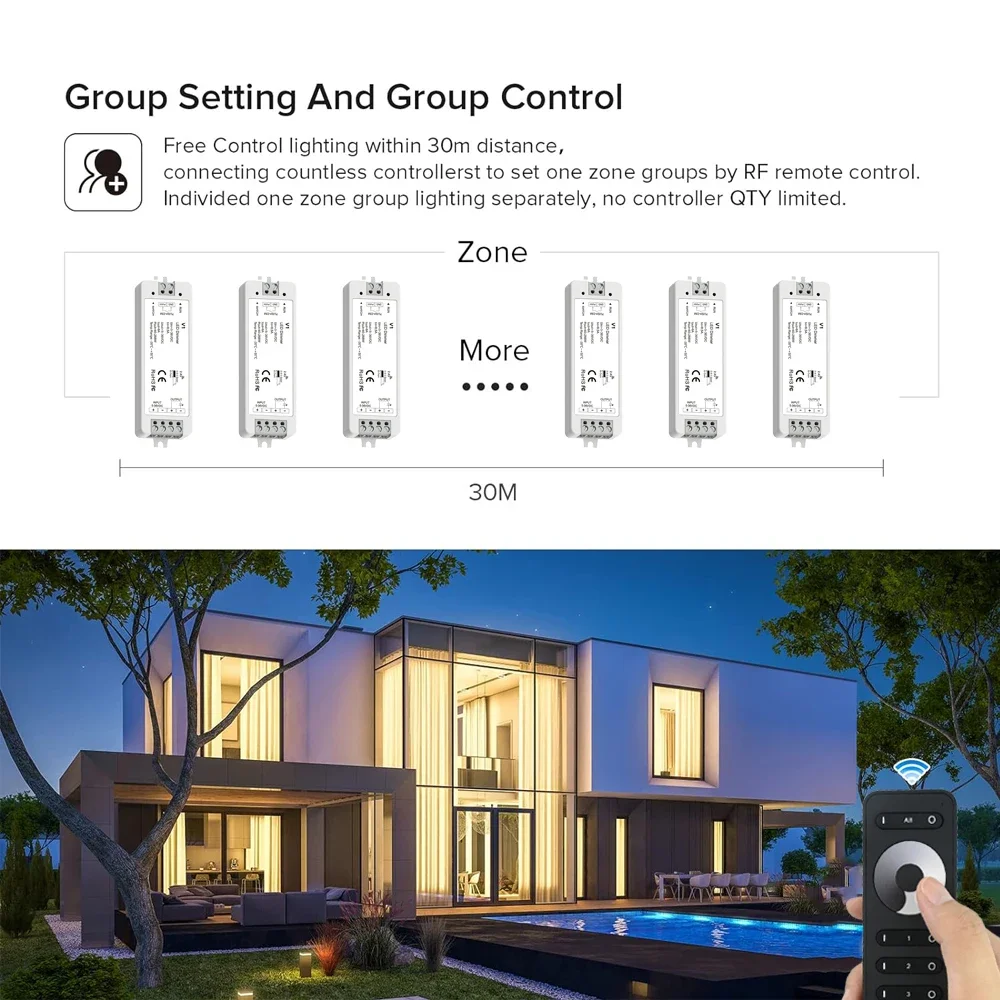

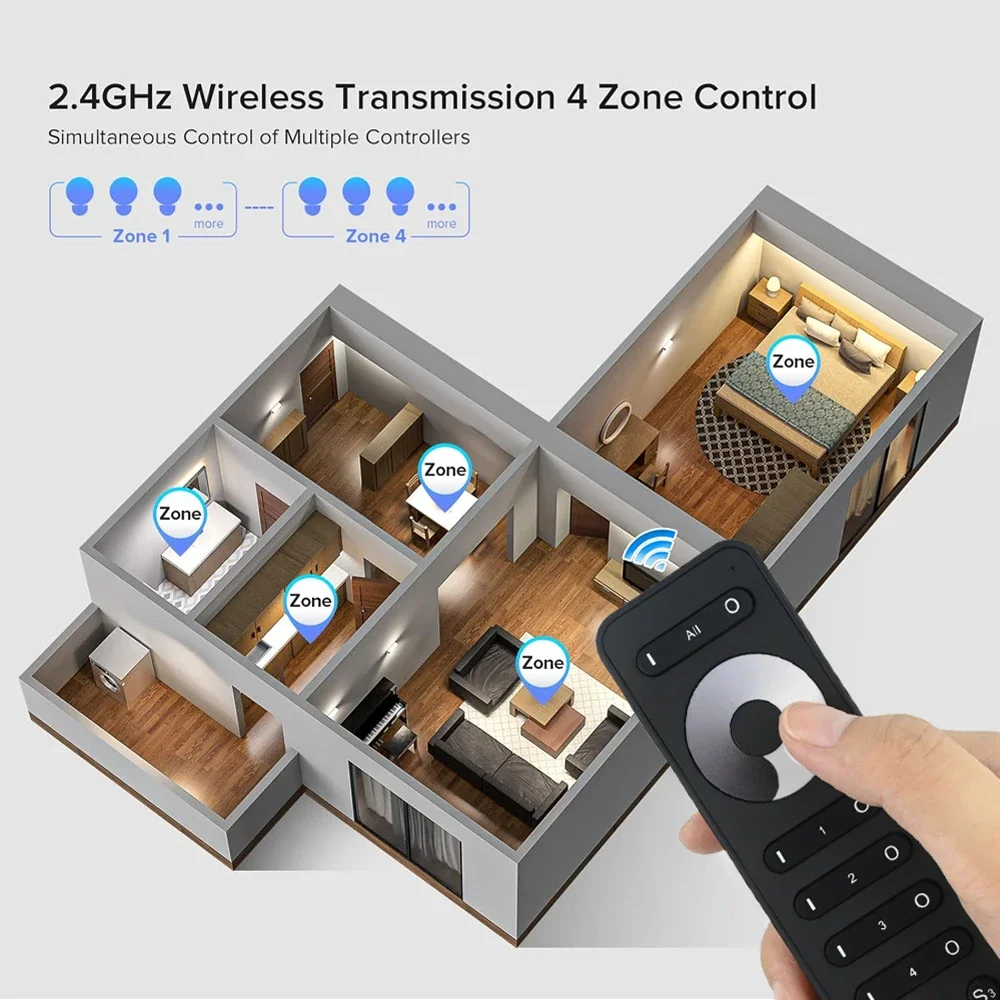

- Facilitates 4-zone dimming control, allowing for individualized lighting settings in different areas.
- Features a 13-key touch color wheel for easy and precise dimming adjustments.
- Operates on a 2.4G RF control frequency, providing a reliable and responsive remote experience without interference from other devices.
🛠️ Main Parameters:
- Input Voltage: 5-36V DC
- Input Current: 8.5A
- Output Voltage: 5-36V DC
- Output Current: 1CH, 8A
- Output Power: 40-288W
- Light Type: Constant Voltage
Installation and Operation:

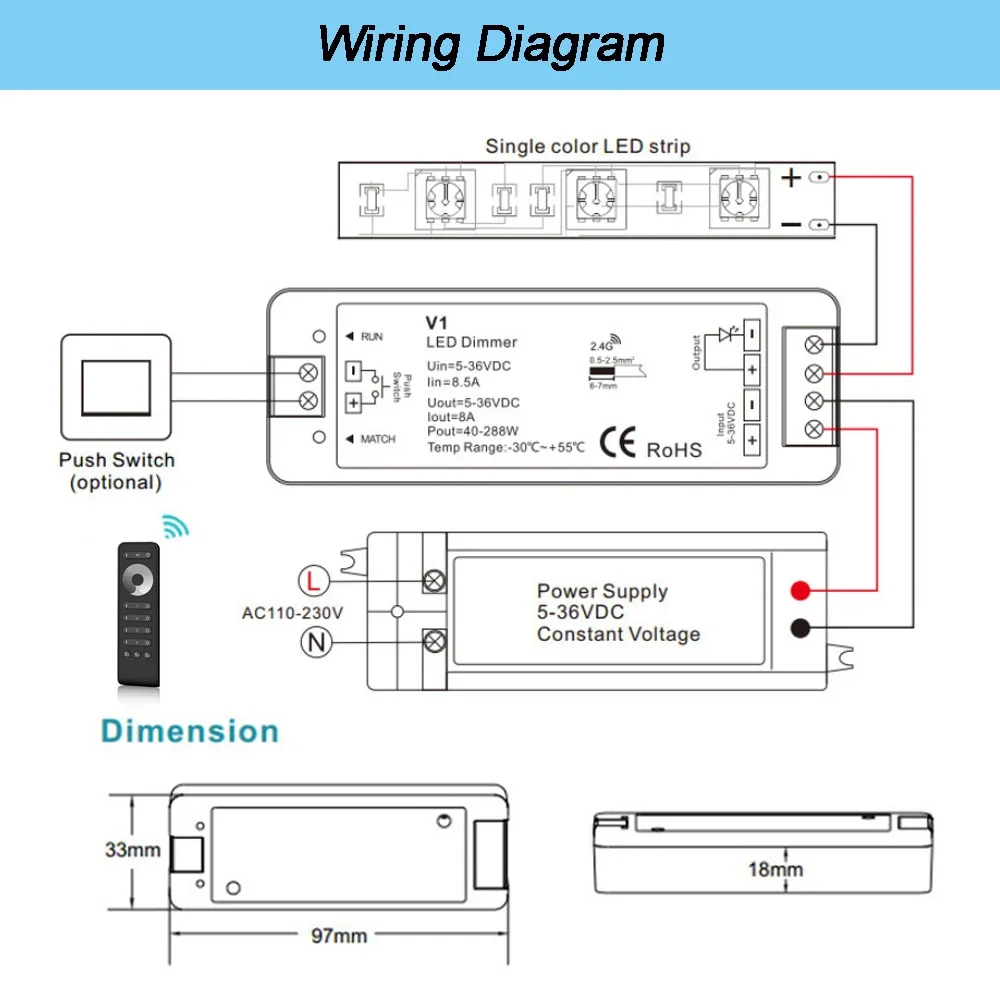

🧩 The V1 dimmer connects with an external push switch to enable simple on/off and dimming functionality through a momentary wall switch:
- Short Press: Instantly turns the light on or off.
- Long Press (1-6 seconds): Activates step-less dimming, allowing users to adjust the light level gradually. The direction of change can be reversed with subsequent long presses.
- Dimming Memory: Returns to the previous light setting upon power restoration, providing convenience even after outages.
️⃣
Light On/Off Fade Time Adjustment:
🧩 Adjustments can be made to customize light transition times:

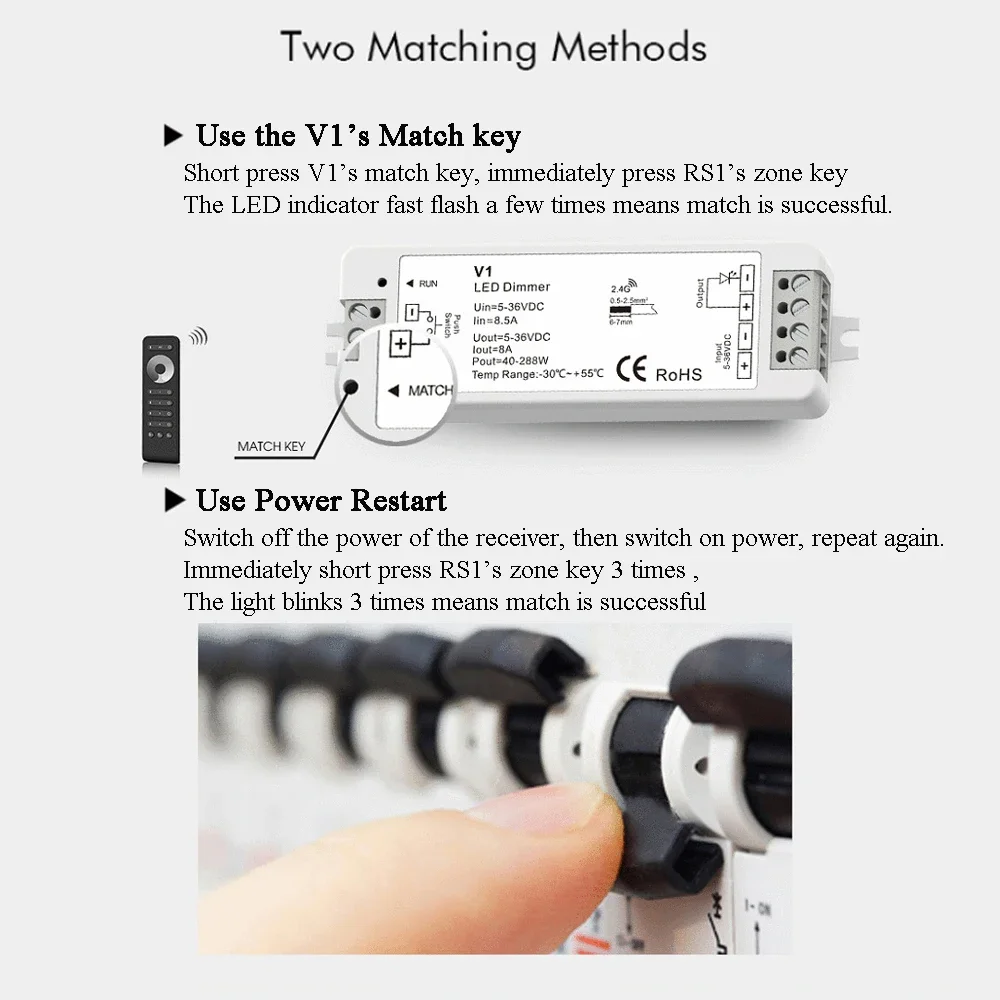

- Long press the match key for 5 seconds, then short press the match key three times to set the fade time to 3 seconds. The indicator will blink three times to confirm.
- Long press the match key for 10 seconds to restore factory settings, including return of the fade time to the default 0.5 seconds.
🧰 Installation Precautions:
- Ensure products are not stacked; maintain a distance of at least 20 cm to prevent overheating and extend lifespan.
- Install away from switching power supplies, maintaining a gap of ≥ 20 cm to mitigate radiation interference.
- Position at least 1 meter above the floor to avoid weak reception signals affecting the remote control distance.
- Avoid proximity to metal objects; keep a minimum distance of 20 cm to prevent signal attenuation.
- Do not install in wall corners or intersections; maintain at least 20 cm of clearance to reduce signal disruption.
🔩 This kit is perfect for individuals looking to enhance their lighting environment with both style and functionality, offering exceptional control over single color LED installations.
